DTM04 Waste Tank Monitor System | Dometic 360604002
Special Price
$365.92
Regular Price
$560.99
SKU
Brand: DometicQty In Stock: 13
DOMETIC-360604002
Waste tank panel and 22 in. tank probe cap displays 4 stages of tank capacity with color coded LED panel illumination.
DTM04 Waste Tank Monitor System | Dometic 360604002 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 5 |
| Michigan | 2 |
| Ohio | 4 |
| Tennessee | 2 |

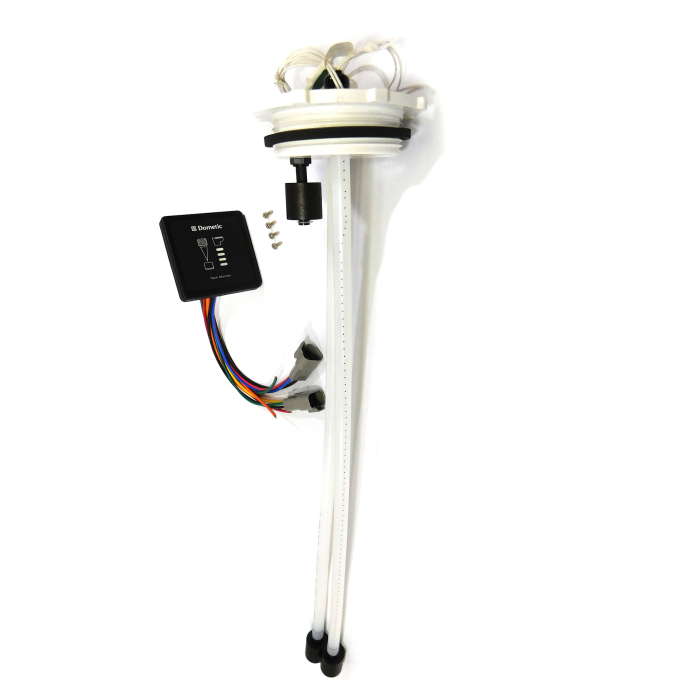

- SeaLand DTM04 tank monitor system
- Includes DTM04 waste tank monitor panel and 22 in. non-vented tank probe cap
- Monitors the fluid levels of 1 waste tank
- For 12 volt or 24 volt DC operation
- Installs in Dometic SeaLand tanks or any rigid tank with 3 in. FNPT opening
- Non-vented cap
- 22 in. version
- Patented 3 probe holding tank cap provides tank level readings to the tank monitor panel
- Reliable probe system is designed to prevent false readings
- 4 illuminated and color coded levels of empty, low, mid and full
- Panel only displays one level at a time to eliminate confusion and save battery power
- Continuous illumination to indicate system power
- Optional shut down relay connects to circuit board to shut down toilet system when waste tank is full
- 0.008A electrical current draw @ 12 volts DC
- 0.145A electrical current draw @ 12 volts DC if used with optional shut down relay
- 0.004A electrical current draw @ 24 volts DC
- 0.090A electrical current draw @ 24 volts DC if used with optional shut down relay
- 3 1/4 in. x 3 1/4 in. panel dimensions
- Panel requires 2 in. minimum clearance behind panel wall
- Use P/N 307230272 holding tank flange kit if tank does not have a 3 in. FNPT tank access port
- Optional shut down relay 385311579 for 12 volt DC
- Optional shut down relay 385311580 for 24 volt DC
- Replaces Sealand 313600114, 313604002
| Manufacturer Part No. | 360604002 |
|---|---|
| Brand | Dometic |
| Shipping/Dimensional Weight | 3.765000 |
| Actual Weight | 1.35 |
| Availability | In Stock |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
