Automatic Charging Relay | Blue Sea 7620
Special Price
$232.16
Regular Price
$342.88
SKU
Brand: Blue Sea Systems
BLUE-7620

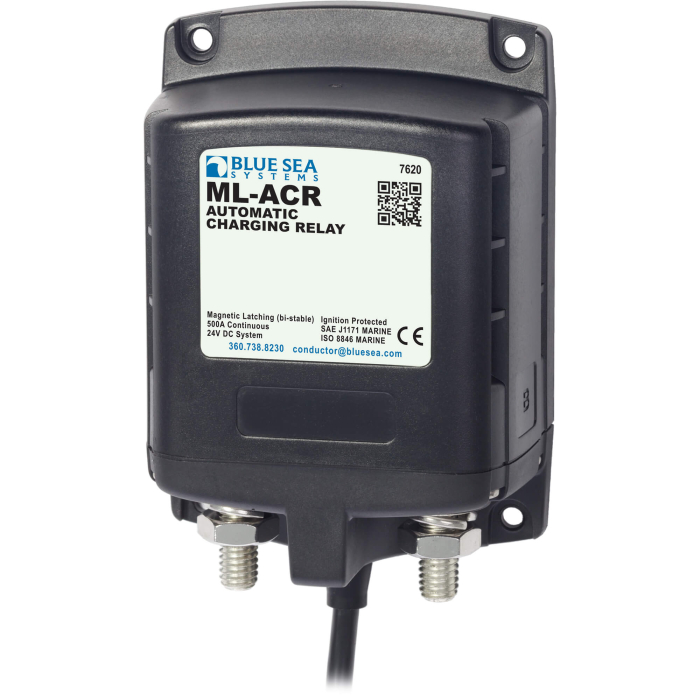

- ML-Series Heavy Duty Automatic Charging Relay
- Includes ML-series remote control contura switch PN 2146
- Automatically manages the charging of two large battery banks
- Allows paralleling of battery banks for emergency starting
- 500A continuous rating to support high-output alternators
- Magnetic latch (ML)?ACR draws very low current (<40mA to monitor terminal voltage) in the ON or OFF states and draws moderate current for very short time when changing state
- Dual sensing?senses charge on both battery banks
- Start Isolation (SI)?can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
- Engine Isolation (EI)?can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
- Senses charging on two battery banks
- LED output to remotely indicate when batteries are combined isolated in voltage lockout or in Start or Engine isolation
- 3/8 in.- 6 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8 in. (22mm) stud length accepts multiple cable terminals
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification
- 12V DC nominal voltage
- Tinned wire control circuit connection
| Manufacturer Part No. | 7620 |
|---|---|
| Brand | Blue Sea Systems |
| Shipping/Dimensional Weight | 2.040000 |
| Actual Weight | 2.04 |
| Availability | Out of Stock |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
| Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
