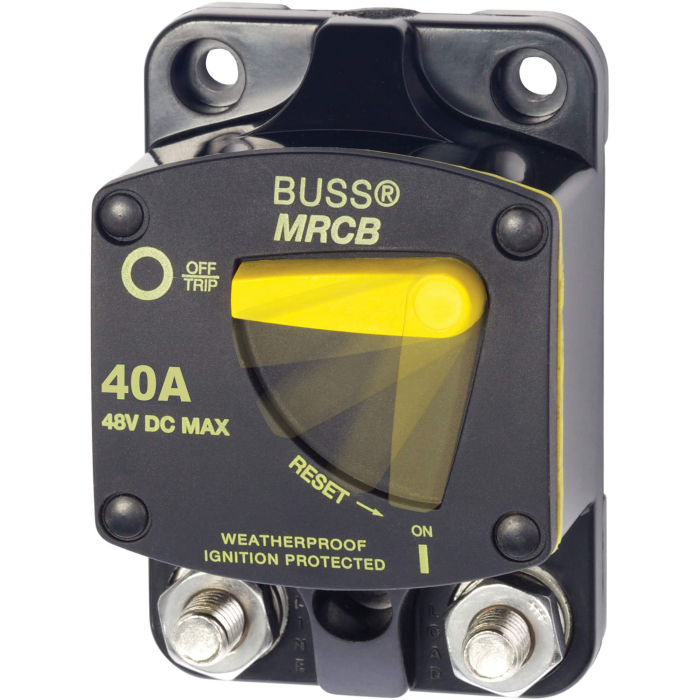

187-Series Circuit Breaker - Surface Mount 40A
Special Price
$103.30
Regular Price
$136.22
SKU
Brand: Blue Sea Systems
BLUE-7138
- Blue Sea 187 series surface mount circuit breaker
- 40 amps DC rating
- Bright yellow reset lever for visual identification of open circuit
- Ideal for main circuit protection of large size battery banks
- Combines switching and circuit protection into a single device
- Trip-free design cannot be held ON during fault current condition
- Not to be used where high inrush currents are expected
- Type III class – switchable/manual reset
- 48 volts DC maximum voltage
- 5000 amps interrupt capacity @ 12 volts DC
- 3000 amps interrupt capacity @ 24 volts DC
- 1500 amps interrupt capacity @ 42 volts DC
- 5/16”-18 terminal studs accepts up to 1/0 AWG heavy duty wire
- Waterproof for use in areas that may experience water spray
- Recessed mounting holes for clean appearance
- #10 (M5) mounting screw size
- 2.323 in. width x 3.439 in. height x 1.797 in. depth
- SAE J1171 ignition protected – safe for installation aboard gasoline powered boats
- CE marked
- IP66 – protected against ingress of dust and water from heavy seas
| Manufacturer Part No. | 7138 |
|---|---|
| Shipping/Dimensional Weight | 3.000000 |
| Actual Weight | 0.58 |
| Brand | Blue Sea Systems |
| Availability | In Stock |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
| Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
