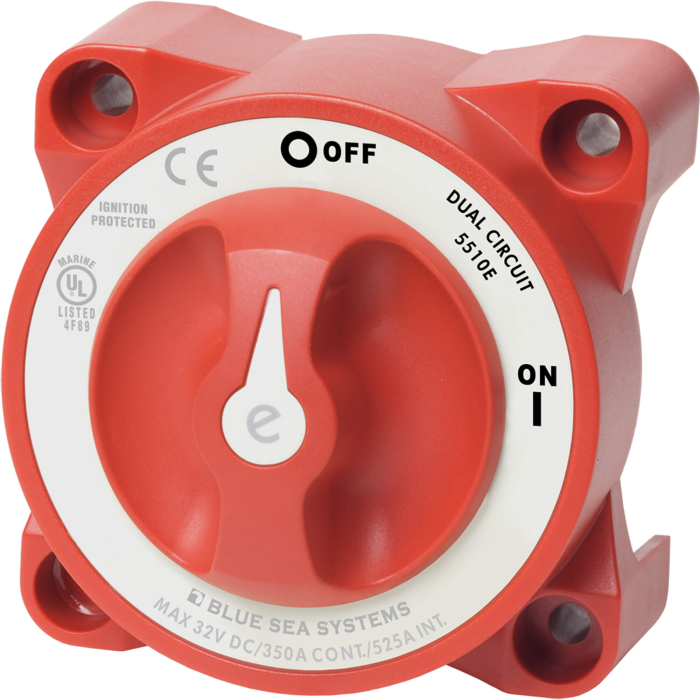

E-Series Dual Circuit Battery Switch
Special Price
$66.84
Regular Price
$89.12
SKU
Brand: Blue Sea Systems
BLUE-5510E
- Red E-Series Dual Circuit Battery Switch
- Simultaneously switches two isolated battery banks
- Ignition protected?safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Cranking rating: 10 sec. 1 000A
- Cranking rating: 1 min. 750A
- Intermittent rating: 5 min. 525A
- Continuous rating 350A
- Maximum voltage rating 32 Volts DC
- Terminal stud size 3/8 in.-16 (M10)
- Terminal stud torque 140 in.-lbs. (15.82 N?m) max.
- Mounting holes accept 1/4 in. (M6) Screw
- Cable size to meet ratings 4/0 AWG (95mm?)
- Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
- Weight lbs. (Kg) 1.16 (0.53)
- Replaces Blue Sea Systems P/N 5510E200
| Manufacturer Part No. | 5510E |
|---|---|
| Shipping/Dimensional Weight | 5.000000 |
| Actual Weight | 1.3 |
| Brand | Blue Sea Systems |
| Availability | Out of Stock |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
| Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
